Water Curtain Dust Collector水幕除塵箱
領跑智能製造新“石”代
Water Curtain Dust Collector水幕除塵箱
所屬品牌:午夜福利视频网站
所屬類別:產品庫
想了解更多相關產品信息,請聯係我們!
0594-2197723
hualongmc@163.com
水幕式除塵器
這種環保設備用於淨化受汙染的空氣。它能夠吸入含有油漆霧或灰塵的空氣,使空氣通過水簾和“沸騰混合通道”,然後進行分離、沉澱,消除有害的油漆霧顆粒和灰塵顆粒。從而為操作人員提供一個清潔的工作環境。
該設備廣泛應用於石材廠、浴室廠、陶瓷廠、混凝土廠、化工廠、木材加工廠、噴漆房以及其他車間。

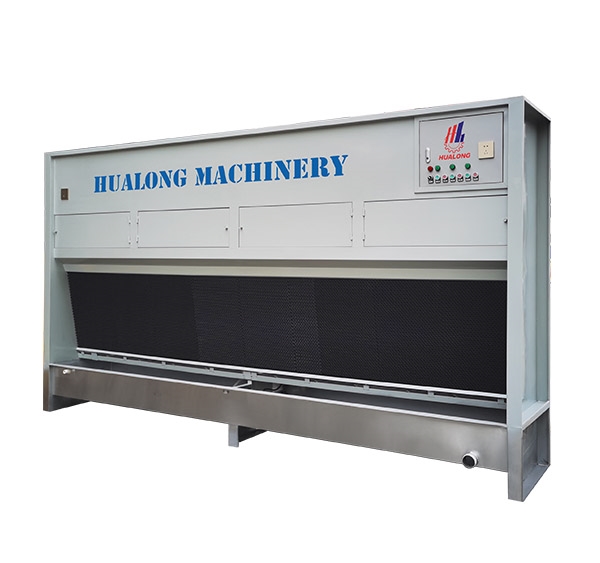

Water Curtain Dust Collector
This enviromental equipment is used for clean polluted air. It can suck air containing paint mist or dust, has the air go through the water curtain and "boiling mixing channel", then separation, precipitation, eliminate harmful paint mist particles and dust particles. So as to provide the operators with a clean working environment.
This equipment is widely used in stone factory, bathroom factory, ceramic factory, concrete, checmical, wood processing, spray booth and other workshop.
產品型號
|
單位
|
HL-CC2M
|
HL-CC3M
|
HL-CC4M
|
HL-CC5M
|
風機風量
|
m³/h
|
18700x1
|
18700x2
|
18700x3
|
18700x4
|
風機功率
|
kw
|
1.1
|
1.1
|
2.2
|
2.2
|
水泵功率
|
kw
|
0.75
|
0.75
|
1.1
|
1.1
|
進風量
|
m³/h
|
25000-32000
|
35000-42000
|
45000-52000
|
55000-62000
|
風機數量
|
m³/h
|
1
|
2
|
3
|
4
|
外形尺寸
|
mm
|
2000x2400(2200)x720
|
3000x2400(2200)x720
|
4000x2400(2200)x720
|
5000x2400(2200)x720
|
%>
溫馨提示:如果想了解更多細節,規格、標準、價格和解決方案,請聯係我們。
